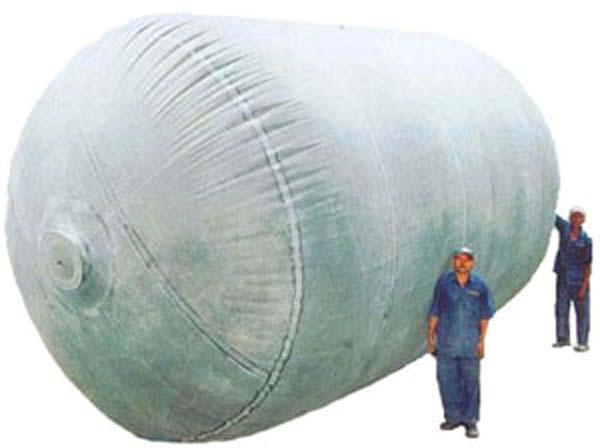

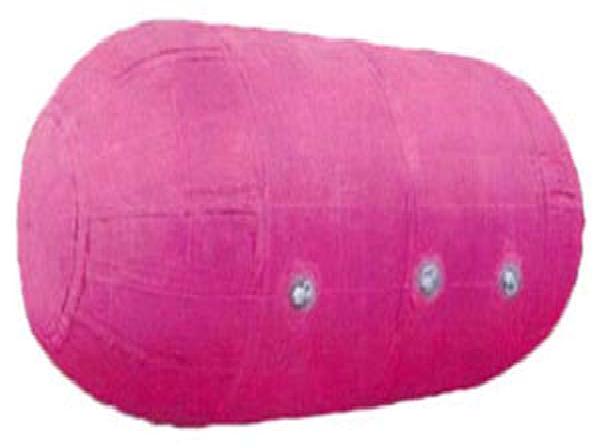

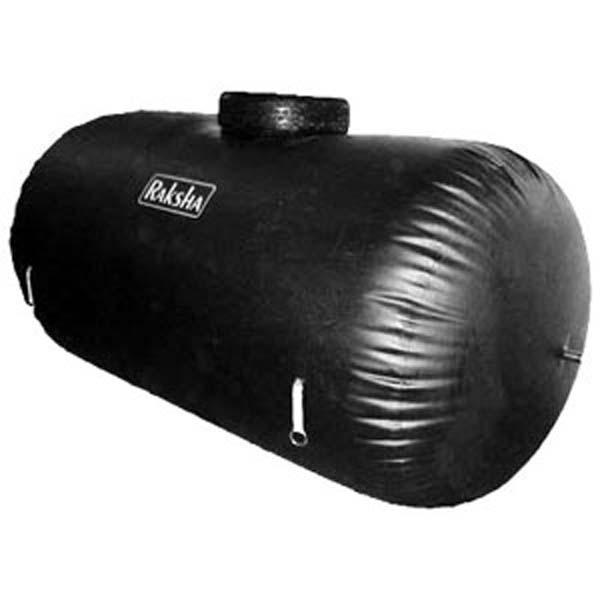

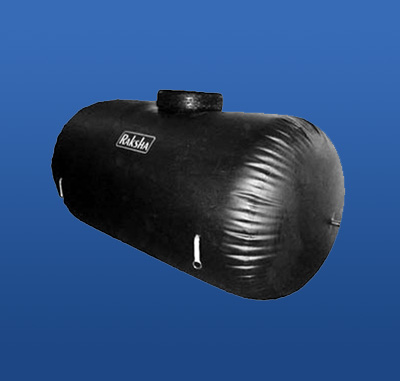

Polymer Gas Balloon is fabricated out of high tenacity polyamide fabric, coated with compatible polymer on the inside for the Gas stored, and on the outside with Hypalon for weather abrasion and UV resistance.
This Gas Balloon is collapsible, intermediate storage tank for any Industrial Gas, prior to bottling under pressure.
Advantages: It is collapsible and very light weight and is installed hanging below the ceiling, saving valuable floor space and is tailor made to suit the available space and capacity. It does not corrode (like the metal tank) and as such it is maintenance free, giving it a long trouble free life.
The Polymer Gas Balloon is the ideal replacement for conventional metal tank.

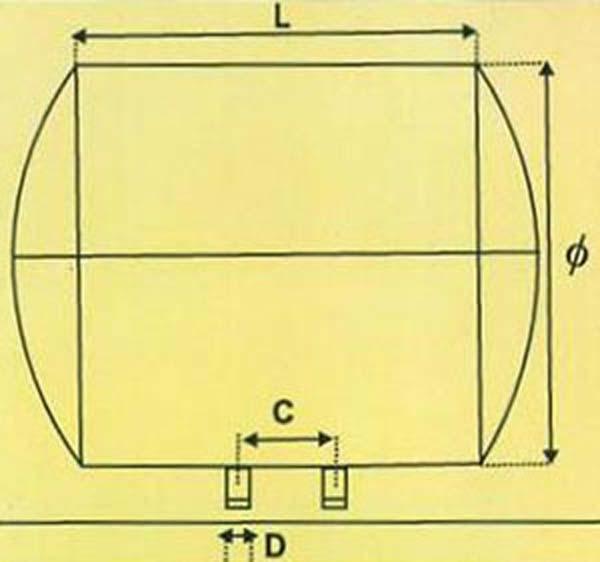

Specifications: | Capacity | Ф (mm) | L (mm) | C (mm) | D (mm)
| | 5 M3 | 1460 | 3000 | 750 | 80
| | 10 M3 | 2200 | 3000 | 750 | 80
| | 25 M3 | 3050 | 3600 | 750 | 115
| | 50 M3 | 4000 | 4000 | 1000 | 205
| | 75 M3 | 4500 | 4800 | 1000 | 205
| | 100 M3 | 5000 | 5100 | 1500 | 205

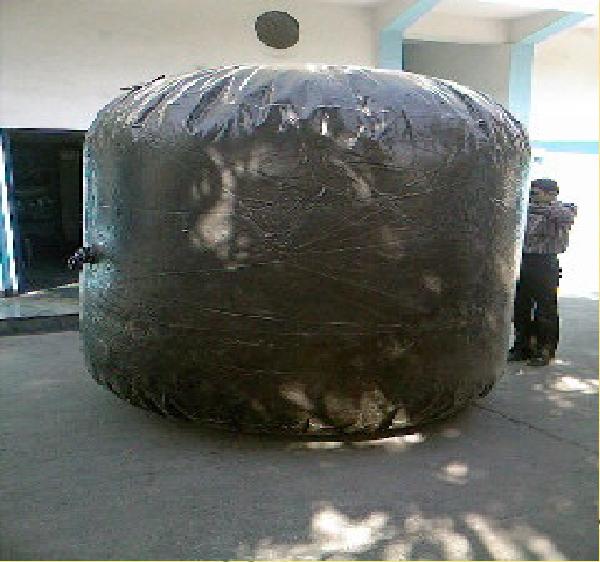

| Other sizes can be manufactured to suit specific customer requirements. Further a variation of gas balloon is also used for bio gas plants. Please contact us for more details |
