» Polymer Processors » Polymer Flexi Separators (Air Cell) (RFS)


Polymer Flexi Separators (Air Cell) (RFS) has been designed for flat ended cylindrical steel conservators of oil cooled power transformers. RFS provides a permanent, flexible and non-porous barrier between the atmosphere and the transformer oil, without affecting the operational function of the system. RFS is an inflatable Air Cell made out of highly resistant fabric coated on both sides. Internally, it is coated to be transformer oil resistant and externally to be ozone and weather resistant. Both the coatings are heat resistant. Polymer Flexi Separators fitted inside a conservator compensates oil volume displacement due to temperature variation while in operation. It ensures: An efficient variation between transformer oil and air Protection against water vapor Suppression of gas bubble formation in the transformer oil Compensation of large volume changes Specifications: The dimensions of the Polymer Flexi Separators are determined according to the dimensions of the conservator.

W (mm)        L (mm)          G (mm)

825                 3035              2010

982                 2352              1170

982                 3232              2050

1140              2620              1280

1140              3270              1930

1297              2725              1260

1297              3747              2250

1454              3214              1560

1454              3994              2340

1611              3491              1680

1611              4131              2320

1768              3668              1700

1768              4188              2220

1925              3775              1650

1925              4665              2540

2082              4232              1950

2082              4982              2700

2239              4549              2110

2239              5199              760

2396              4796              2200



Other sizes can be manufactured to suit specific customer requirements. Please contact us for more details.

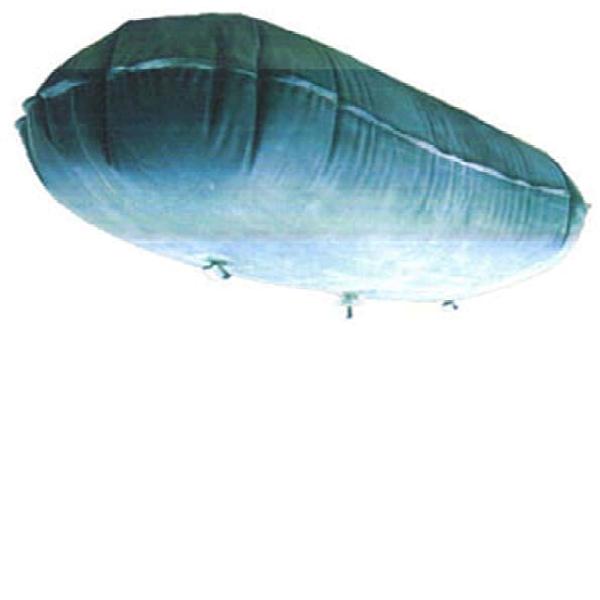

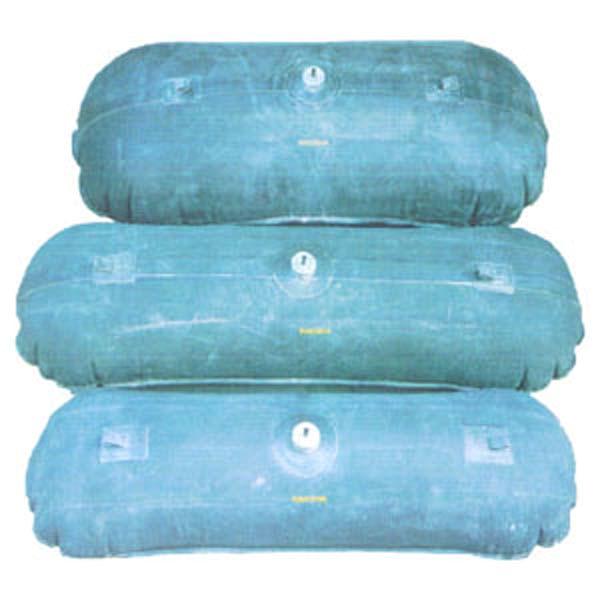

Polymer Flexi Separators (Air Cell) (RFS)

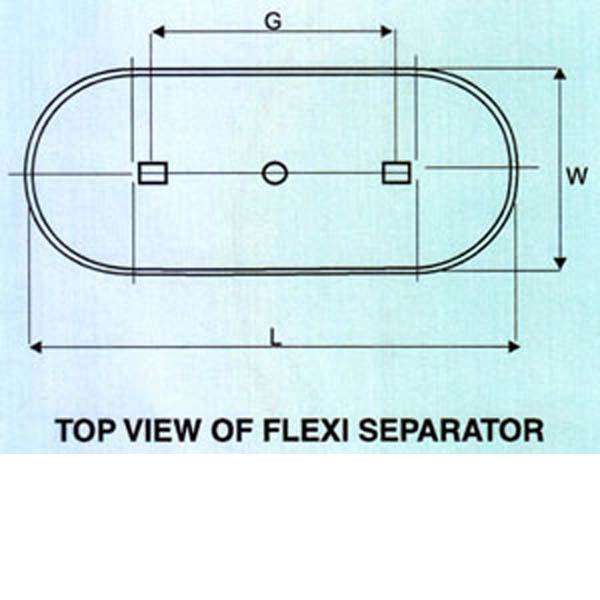

Polymer Flexi Separators (Air Cell) (RFS) design
