» Polymer Processors » Polymer Air Bags

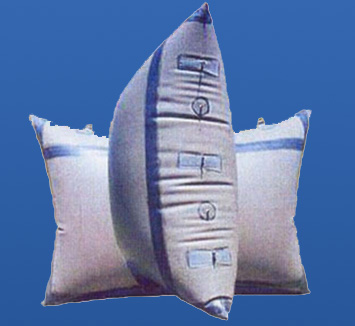

Polymer Air Bags are made out of polyamide fabric coated with synthetic rubber, suitable for weather and abrasion resistance complete with standard accessories. Air Lifting Bag will be provided with operation cylinder, manifold pressure gauge and suitable hose assembly for inflation of bags.



Features:
Air Lifting Bags are available in capacities ranging from 1.1 tons to 75 tons
Air bag operates on standard shop air uptp 116 psi
Air Bags will fit into the tightest areas with collapsed height of 1.1 – 1.2 inches
All bags are manufactured from high density double texture polyamide fabric coated with synthetic rubber
Serrated lifting surface on each side of the air bag helps prevent load slippage
Multi color hoses to help keep track of bags during multi bag lifts
Wide variety of safety controllers for single and multiple bag systems
Bright ‘X’ is molded into each bag for easy center point placement
Light weight makes the Air Bags easy to set up and transport

Nominal Dimensions:

Description

10T

20T

40T

60T

Size Deflated (inch)

15 X 15

22 X 22

30 X 30

36 X 36

Thickness (inch)

1.1

1.1

1.2

1.2

Max Lift Height (inch)

7.0

10.6

16.0

20.0

Max Load (Tons)

10.5

20.5

41.0

63.0

Bag Weight (Lbs)

8.8

17.8

39.0

55.8

Max Pressure (psi)

116

116

116

116

Test Pressure (psi)

174

174

174

174

Burst Pressure (psi)

464

464

464

464

Volume (ft3)

3.04

10.45

30.5

53.1
